Supraglottic Cancer

Core concept: Supraglottic squamous cell carcinoma may have a modest mucosal footprint but substantial submucosal extension. Imaging complements endoscopy by mapping the pre-epiglottic and paraglottic spaces, cartilage, tissues beyond the larynx, airway, and bilateral cervical nodal chains.

Visual Reference

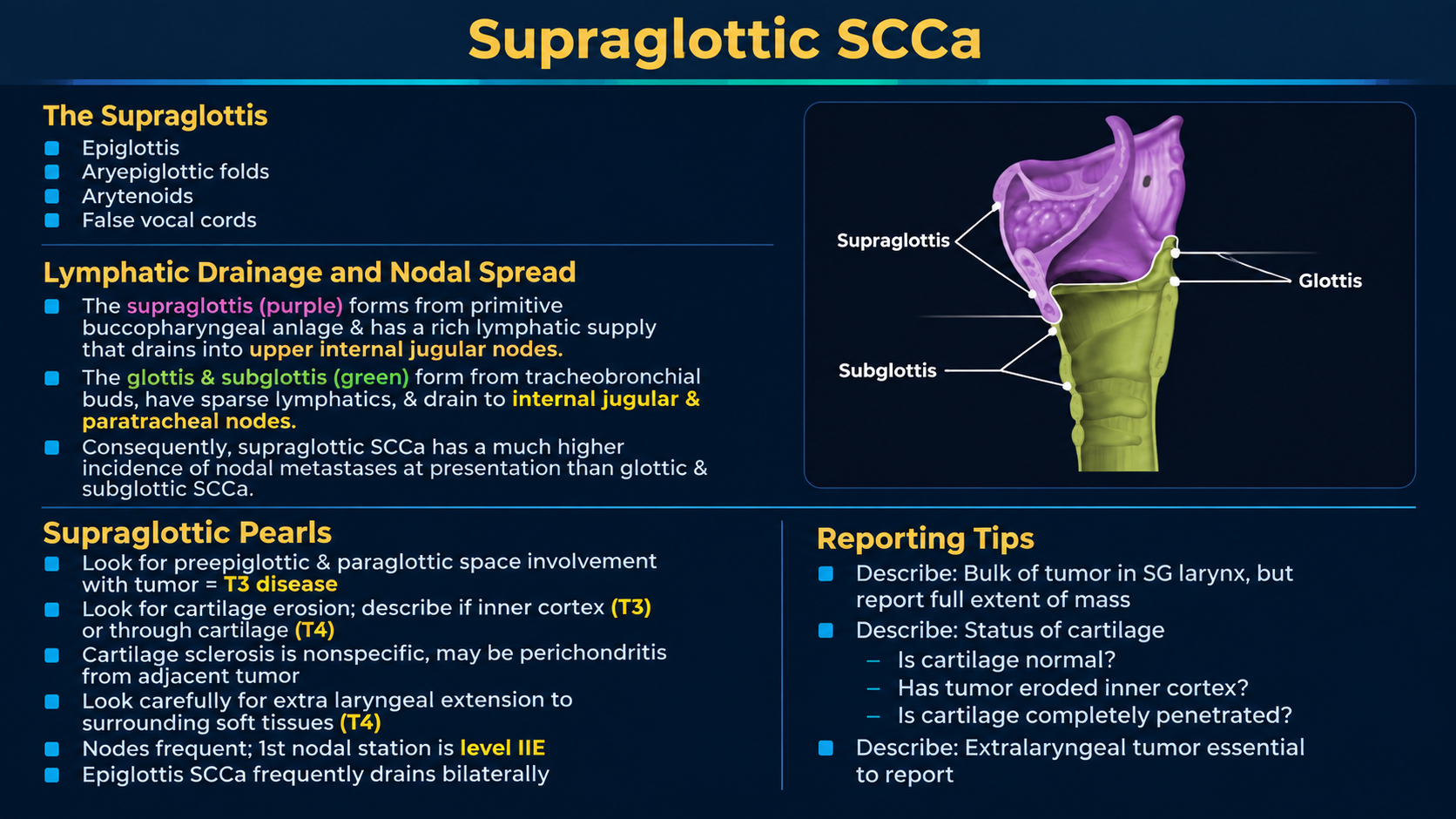

Supraglottic SCC overview and nodal drainage — Supraglottic Anatomy, Nodes, and Reporting PearlsClick to enlarge

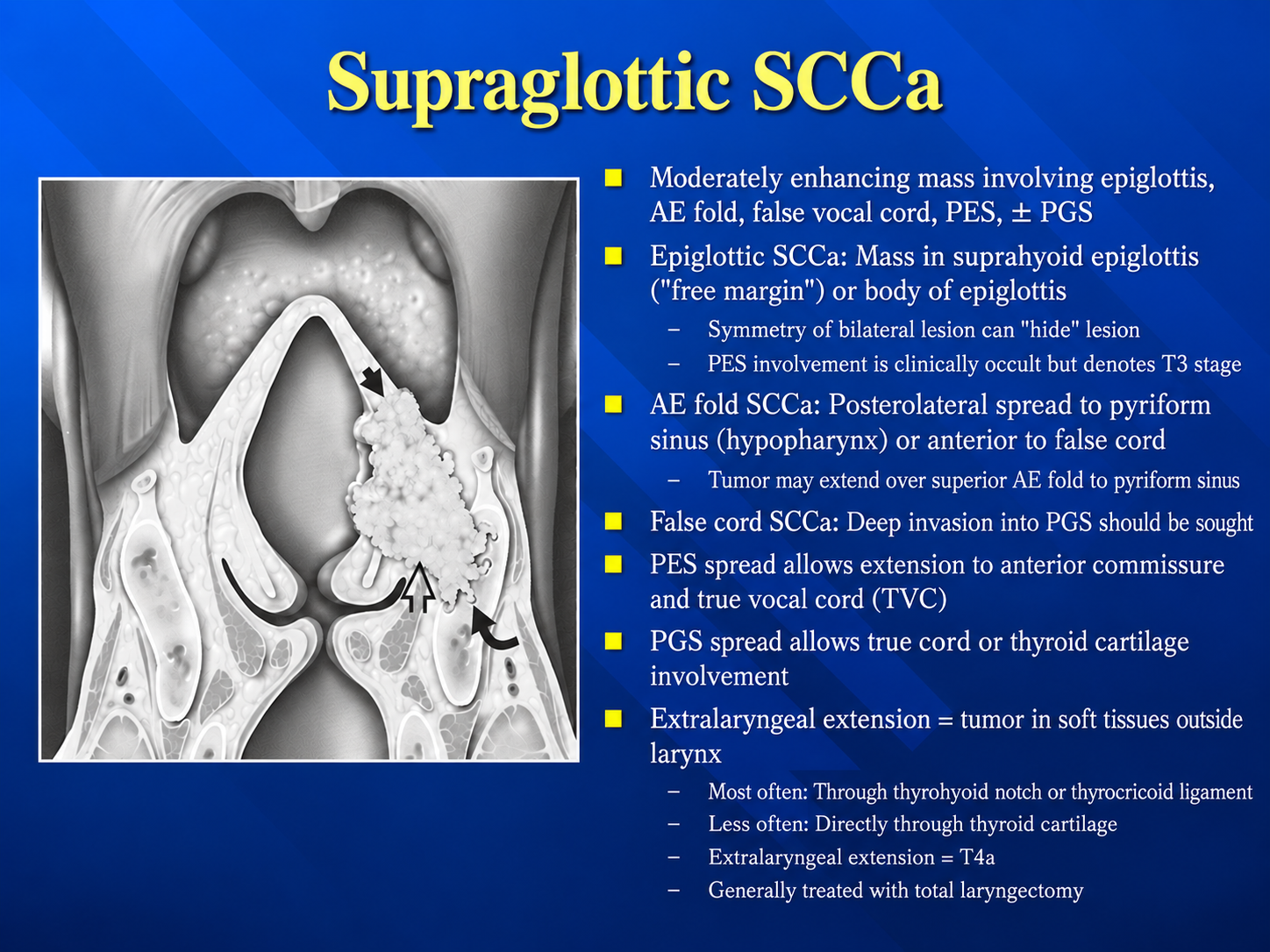

Supraglottic SCC routes of spread — Subsite-Specific Routes of SpreadClick to enlarge

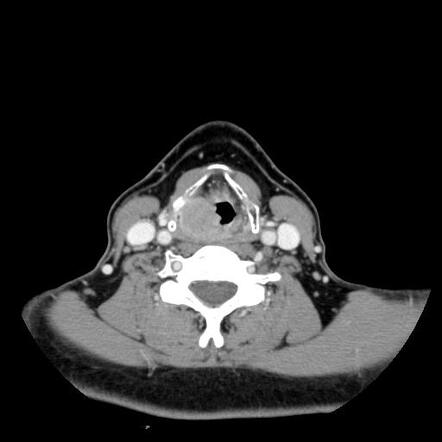

Axial contrast CT example of a supraglottic mass — Axial Contrast CT ExampleClick to enlarge

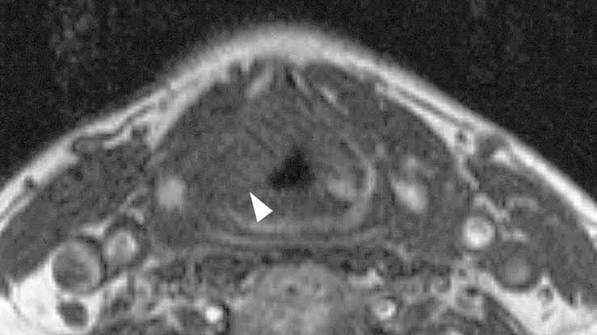

Axial MRI example of a supraglottic lesion — Axial MRI ExampleClick to enlarge

Origin and Behavior

Commonly arises from the laryngeal epiglottis, aryepiglottic fold, false cord, arytenoid region, or ventricle.
Most invasive tumors are conventional SCC.
Symptoms can be delayed because early lesions may not disturb true-cord vibration.
Typical imaging appearance is an asymmetric mildly to moderately enhancing mucosal or submucosal mass.

Clinical correlationVocal-cord fixation is determined clinically/endoscopically and should not be inferred from static imaging alone.

Deep-Space Spread

Epiglottic primary: preferentially replaces pre-epiglottic fat.
False-cord primary: preferentially enters paraglottic fat and may spread transglottically.
Aryepiglottic-fold primary: may extend toward the medial piriform sinus, epiglottis, and paraglottic space.
Masslike enhancing replacement contiguous with tumor is more convincing than isolated fat stranding.

T3 thresholdPreepiglottic or paraglottic-space invasion makes the primary at least T3.

Nodal Pattern

The supraglottis has rich and frequently bilateral lymphatic drainage.
First-echelon spread usually involves upper and middle jugular chains, especially levels II and III.
Assess both sides for morphology, necrosis, clustering, and extranodal extension—not size alone.
Document nodal level, side, number, largest dimension, necrosis, and definite extranodal extension.

Imaging Approach

Modality	Best use	Limitation
Contrast CT	Airway, cortical cartilage, nodes, rapid staging	Nonossified cartilage and dental artifact
MRI	Deep spaces, tongue base, nonossified cartilage, equivocal extension	Motion and inflammatory overcall
FDG-PET/CT	Advanced-stage nodal/distant staging and synchronous tumors	Insufficient anatomic resolution for subtle local T staging

Technique: Use thin sections and multiplanar reformations. Sagittal imaging is particularly valuable for the epiglottis and pre-epiglottic space.

Cartilage and Extralaryngeal Spread

CT signs include sclerosis, erosion, lysis, and tumor beyond cartilage.
Sclerosis is sensitive but nonspecific; destructive change and extra-cartilaginous tumor are more specific.
Isolated arytenoid sclerosis should not be equated with invasion.
State the deepest confidently involved thyroid-cartilage layer.
Assess the thyrohyoid membrane, strap muscles, thyroid gland, deep tongue muscles, hypopharynx, trachea, and neck soft tissues.

Staging distinction: Inner thyroid cortex invasion is T3. Tumor through the outer cortex or extending beyond the larynx is T4a.

AJCC Primary Tumor Categories

Category	Supraglottic definition
Tis	Carcinoma in situ.
T1	One supraglottic subsite with normal vocal-cord mobility.
T2	Adjacent supraglottic/glottic mucosa or mucosa outside the supraglottis, without laryngeal fixation.
T3	Limited to larynx with vocal-cord fixation and/or postcricoid, pre-epiglottic, paraglottic, or inner thyroid cortex invasion.
T4a	Through outer thyroid cortex and/or tissues beyond the larynx.
T4b	Prevertebral space, carotid encasement, or mediastinal invasion.

Current system: AJCC 8th edition remains current for larynx in 2026; Version 9 replaces individual disease sites only as new protocols take effect.

Staging Search Pattern

Define the epicenter and involved supraglottic subsites.
Measure in three dimensions and record midline crossing.
Describe airway narrowing or urgent obstruction.
Map extension to vallecula, tongue base, medial piriform sinus, postcricoid region, glottis, and subglottis.
Assess pre-epiglottic and paraglottic spaces.
State transglottic extension.
Classify thyroid cartilage as normal, equivocal, inner cortex, or through outer cortex.
Assess cricoid and cricoarytenoid joints.
Map extralaryngeal extension.
Evaluate bilateral cervical nodes and distant/synchronous disease when included.

Reporting Checklist

Primary: epicenter, subsites, dimensions, midline, airway.

Deep extent: pre-epiglottic space, paraglottic space, transglottic spread, postcricoid region.

Framework: thyroid inner/outer cortex, cricoid, cricoarytenoid joints.

Beyond larynx: membranes, strap muscles, thyroid, trachea, tongue, esophagus, prevertebral/carotid/mediastinal compartments.

Nodes: level and side, size, necrosis, and definite extranodal extension.

Example Impression

Infiltrative supraglottic mass centered in the left false cord and laryngeal surface of the epiglottis, with replacement of the left paraglottic and pre-epiglottic fat. No definite thyroid or cricoid cartilage invasion and no extralaryngeal extension. Findings indicate at least cT3 disease; final T category should incorporate endoscopic vocal-cord mobility. Bilateral level II–III metastatic adenopathy, including a necrotic left level IIA node with definite imaging extranodal extension.

Important mimics

Consider lymphoma, neuroendocrine or minor-salivary tumors, amyloidosis, inflammatory disease, hematoma, vascular malformation, and laryngocele when the lesion is smooth, submucosal, unusually homogeneous, or not typical for SCC.
