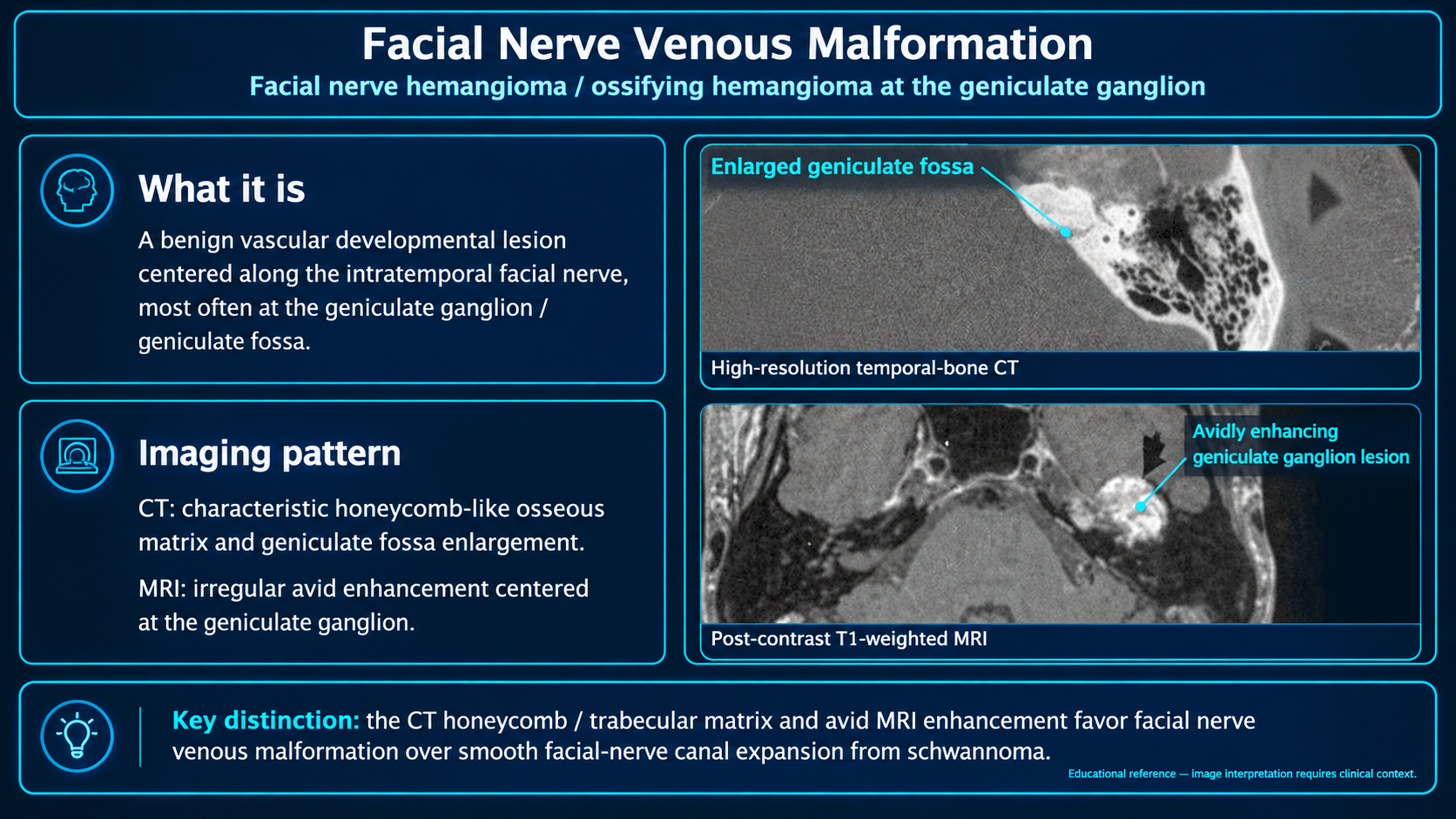

Venous vascular malformations of the facial nerve

• Osteolytic lesion with irregular amorphous margins centered in the facial nerve canal or geniculate ganglion region
• Pathognomonic internal honeycomb or 'spoke wheel' ossific matrix pattern (present in ~50% of cases)
• Intense homogeneous enhancement on T1 gadolinium sequences with T2 hyperintensity
• Small size (~1 cm at presentation) with significant symptoms despite being unencapsulated

• CT demonstrates an osteolytic lesion centered in the facial nerve canal with irregular and amorphous bone margins, reflecting the unencapsulated nature of the lesion.
• The pathognomonic internal honeycomb or spoke-wheel arrangement of ossification radiating outward from the lesion center is present in approximately half of cases and is highly specific for ossifying hemangiomas.
• MRI T1 signal is iso to slightly hypointense, helping distinguish from other enhancing lesions.
• MRI T2 signal is hyperintense, reflecting the vascular/fluid-rich nature of the malformation.
• T1 gadolinium sequences show intense and homogeneous contrast enhancement characteristic of vascular malformations.
• The lesion has a predilection for the geniculate ganglion region (though rare cases occur in the internal auditory canal), unlike schwannomas which can occur anywhere along the facial nerve.
• Both capillary and cavernous histological subtypes can coexist within a single tumor.
• Despite small size at presentation, these lesions cause significant symptoms due to mass effect on the nerve, distinguishing them from schwannomas which typically remain asymptomatic at larger sizes.

• Facial nerve schwannoma: distinguished by well-defined and remodeled bony margins (versus irregular amorphous margins), larger size with fewer symptoms, and lack of ossific matrix; schwannomas can occur anywhere along the nerve while venous malformations favor the geniculate ganglion.
• Facial nerve perineurioma: rare nerve sheath tumor; lacks the characteristic ossific honeycomb pattern and has different clinical presentation.
• Meningioma of the geniculate ganglion: can occur at the same location but typically shows different imaging characteristics and enhancement pattern.
• Malignant schwannoma/MPNST: distinguished by aggressive imaging features, rapid growth, and heterogeneous enhancement.
• Facial nerve metastases: typically have history of primary malignancy, different clinical context, and often multiple lesions.
• Bell's palsy: clinical mimic when presentation is acute; imaging would be negative, whereas vascular malformation shows characteristic bony and enhancement findings.

Describe as a small osteolytic lesion centered in the facial nerve canal (or geniculate ganglion) with irregular indistinct margins, intense homogeneous enhancement on postcontrast MRI, and—if present—note the pathognomonic internal honeycomb or spoke-wheel ossification pattern as highly suggestive of venous vascular malformation; clearly distinguish from the well-defined remodeled margins and less marked enhancement that favor schwannoma.

• Confusing with facial nerve schwannoma: while both enhance intensely, schwannomas have well-defined remodeled bony margins and typically remain asymptomatic despite larger size; the irregular amorphous margins and small size with significant symptoms favor malformation.
• Overlooking the pathognomonic honeycomb ossification pattern when present, which would strengthen the diagnosis and increase specificity.
• Misinterpreting acute facial nerve palsy as Bell's palsy without imaging, missing the underlying structural lesion that requires surgical intervention.
• Assuming location can be anywhere along the facial nerve; predilection for the geniculate ganglion is a key diagnostic clue, with involvement elsewhere being rare and suggesting alternative diagnosis.
