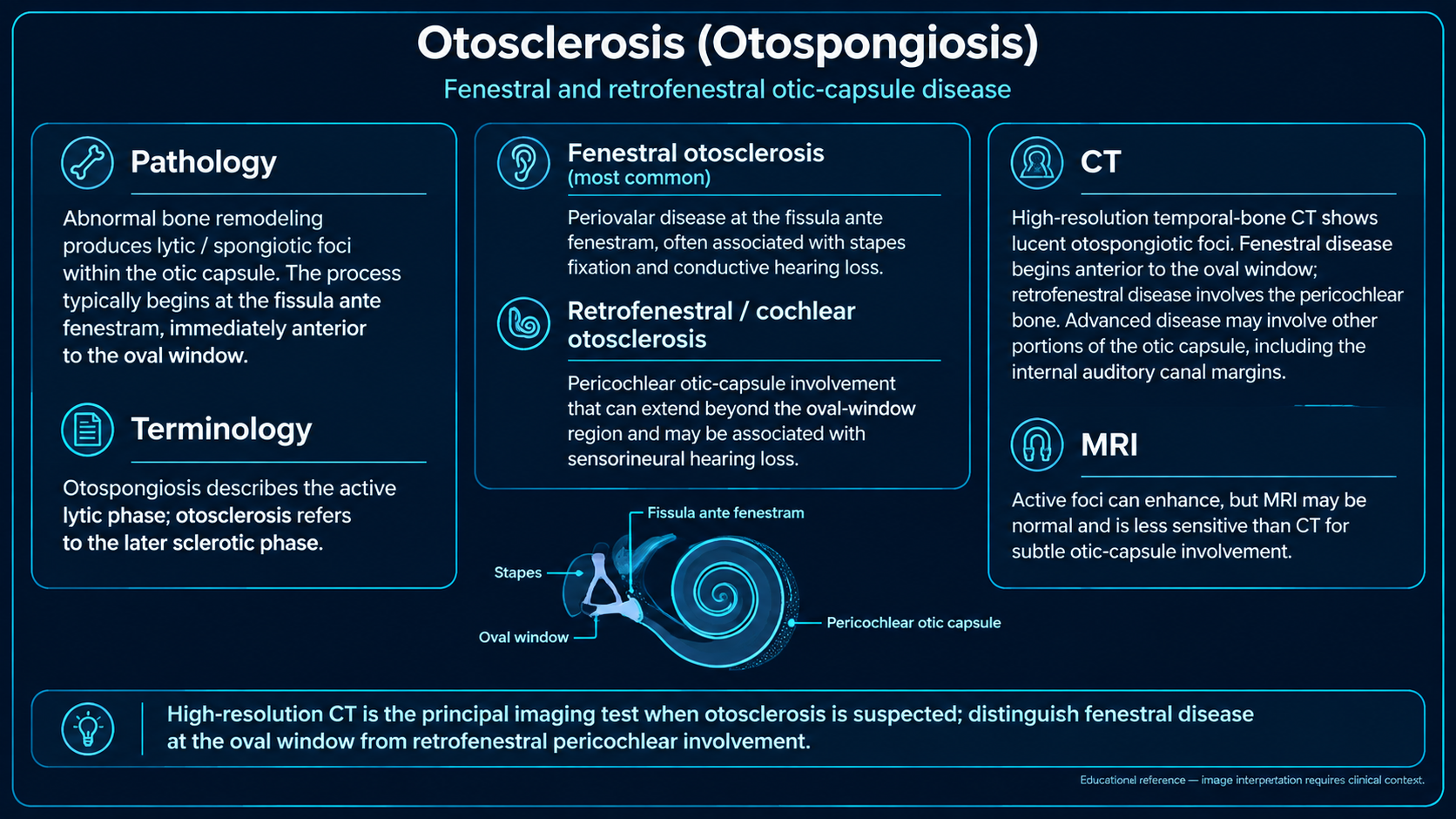

Otosclerosis (Otospongiosis)

Otosclerosis typically presents in the 4th-5th decade with progressive conductive, sensorineural, or mixed hearing loss; imaging is used to characterize the extent of disease, guide surgical planning, and exclude mimicking pathology.

Key Images


Image 3

Image 10

Image 11

Image 12

Image 13

Look For First

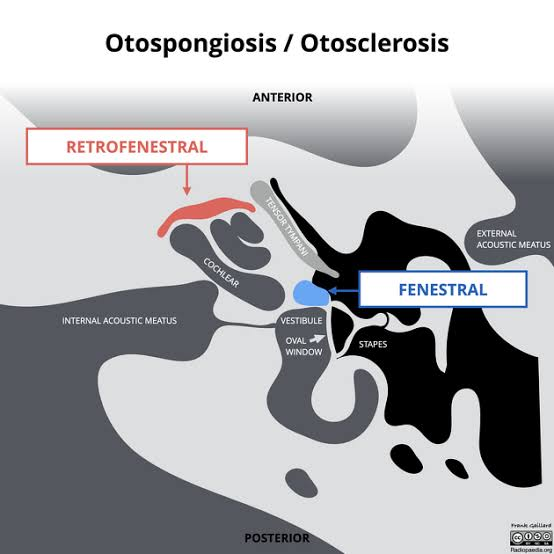

  • Lucent demineralization of the otic capsule at the fissula ante fenestram anterior to the oval window on CT (fenestral otosclerosis, ~80% of cases)
  • Circumferential cochlear capsule involvement creating a 'fourth turn' or 'double ring' sign (retrofenestral otosclerosis, ~20% of cases)
  • Stapes footplate thickening or fixation with round window involvement on thin-slice bone algorithm CT
Key Image Findings
  • High-resolution thin-slice CT with bone algorithm in axial and coronal (preferably 20 degrees coronal) planes is the imaging modality of choice; axial and coronal reformats best demonstrate subtle early otic capsule changes.

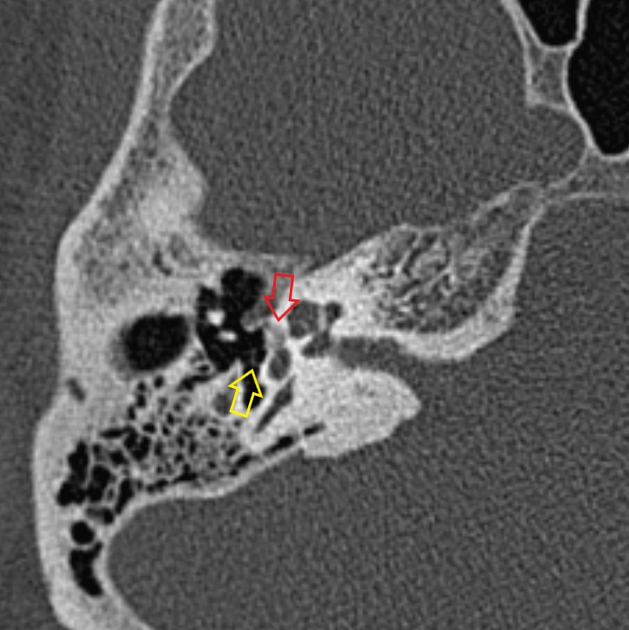

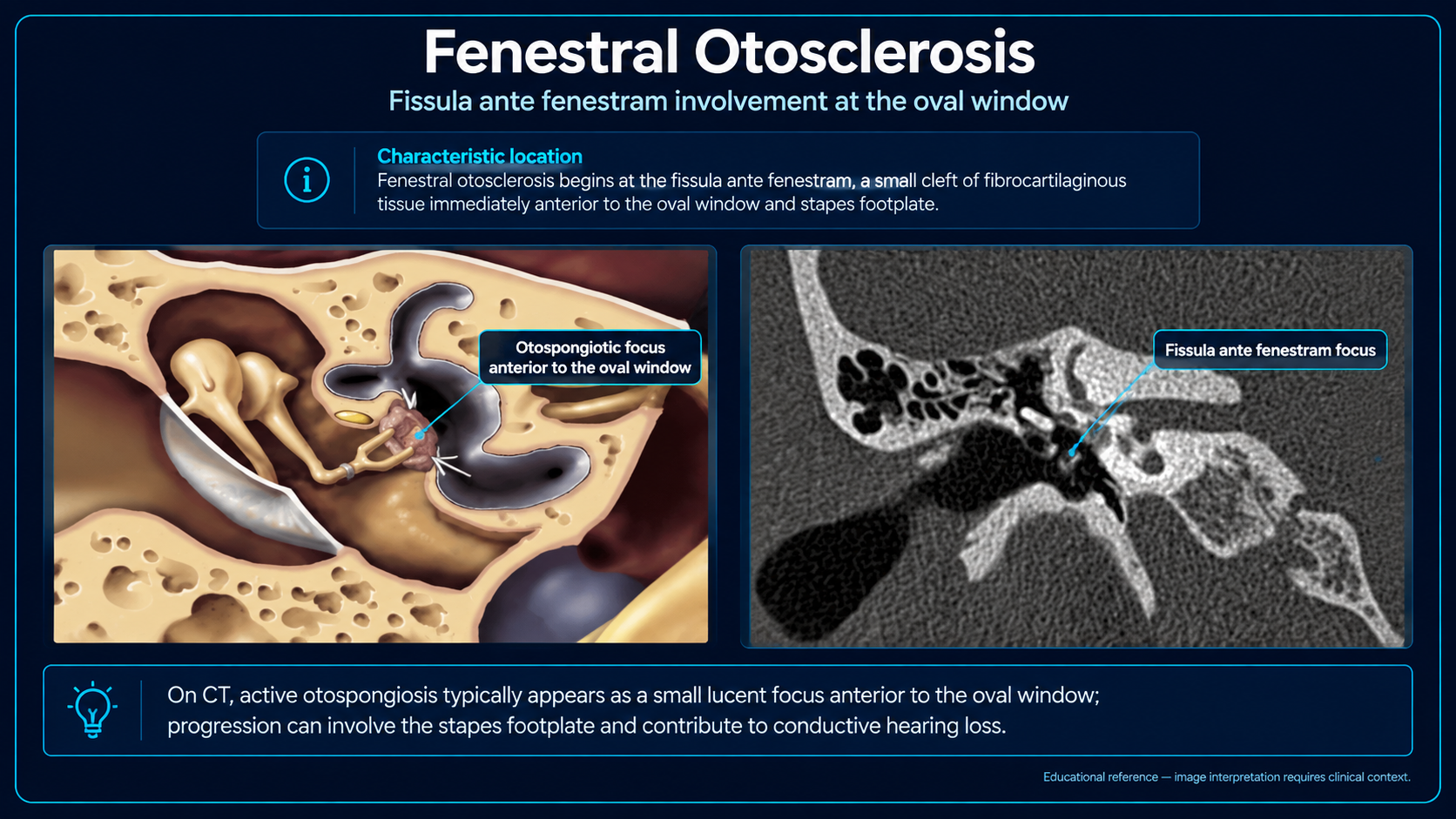

  • Fenestral otosclerosis (80%): lucent demineralization (otospongiotic phase) or increased attenuation (otosclerotic phase) at the fissula ante fenestram just anterior to the oval window, often causing stapes footplate thickening and fixation.
  • Round window involvement commonly accompanies fenestral disease, appearing as lucency or ossification of the round window niche; isolated round window otosclerosis can occur.

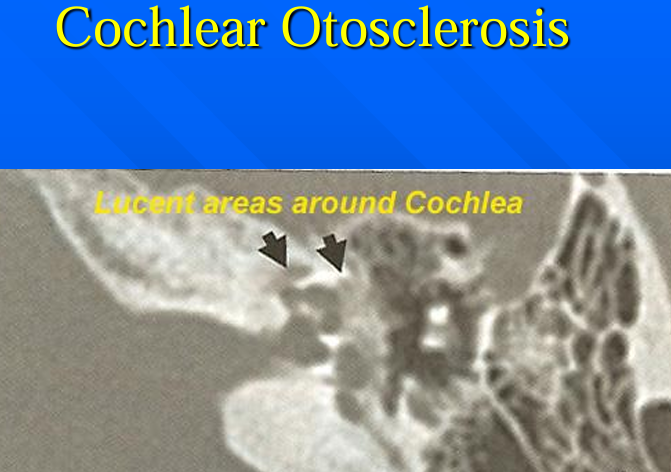

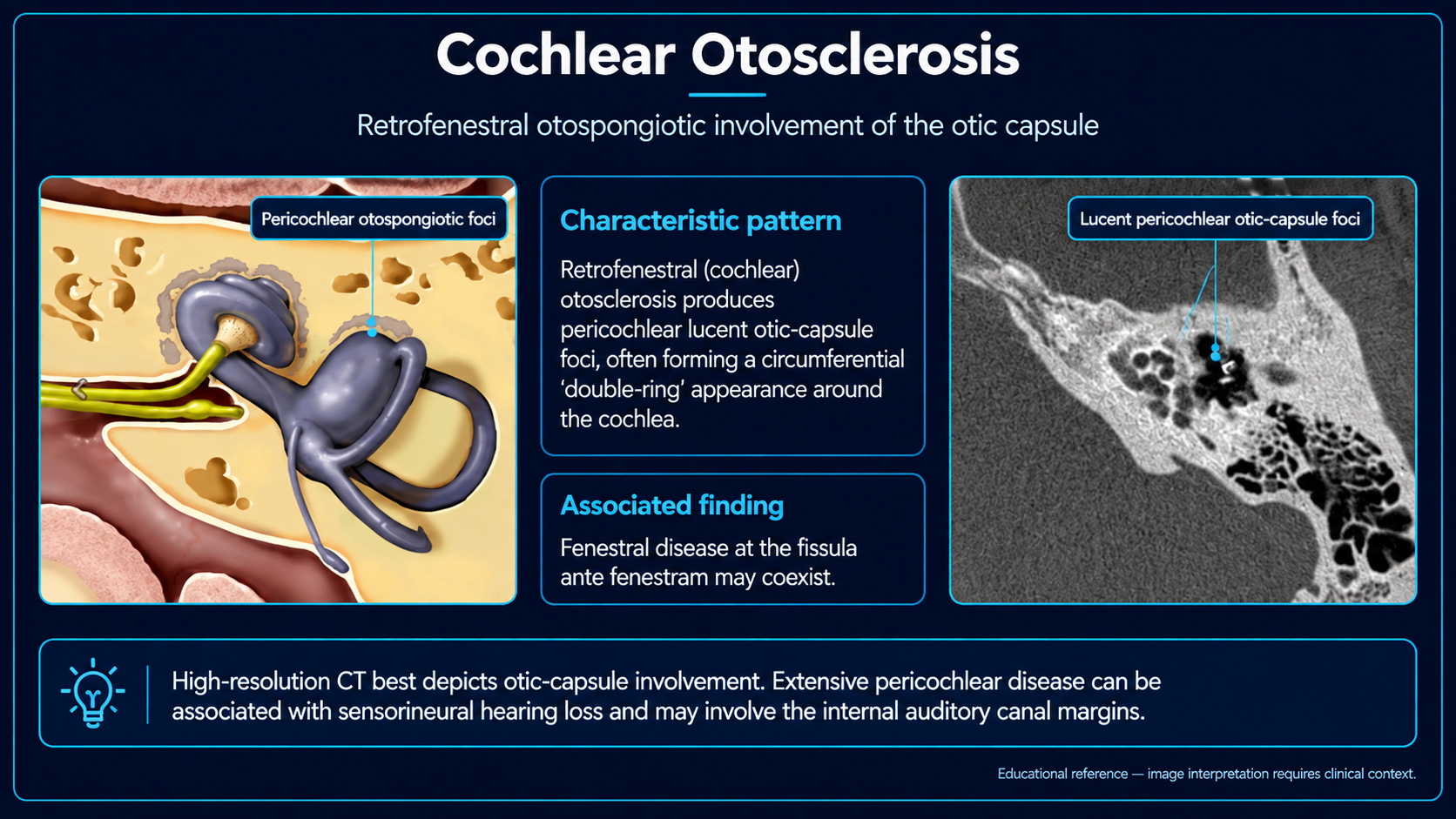

  • Retrofenestral otosclerosis (20%): focal or circumferential demineralization of the cochlear capsule; circumferential involvement produces a characteristic 'fourth turn' or 'double ring' sign due to the appearance of an additional bony whorl.
  • Otospongiotic phase: decreased attenuation (lucency) within the normally dense otic capsule border, reflecting osteoclastic bone resorption and spongy bone formation.
  • Otosclerotic phase: increased attenuation within involved regions; may be difficult to distinguish from normal bone, but diagnostic features include otic capsule thickening or abnormally convex cortex anterior to the oval window.
  • MRI is limited in fenestral disease but valuable in retrofenestral otosclerosis, showing pericochlear and perilabyrinthine soft-tissue signal on T1-weighted images (corresponding to CT lucencies), often with contrast enhancement and increased T2 signal.
  • Post-contrast fat-saturated 3D FLAIR is superior for detecting enhancement of active otospongiotic disease, particularly in the cochlear base, and differentiates active from inactive (sclerotic) phases.
Differential Diagnosis
  • Osteogenesis imperfecta: otic capsule lucencies similar to otosclerosis but accompanied by non-deformed fragile bones and blue sclera, which distinguish it from isolated otosclerosis.
  • Paget disease of bone: bony expansion typically in elderly patients affecting multiple skeletal sites beyond the temporal bone, unlike the otic capsule-specific involvement of otosclerosis.
  • Osteoradionecrosis: occurs in prior radiation treatment fields with vascular injury and bony ischemia, whereas otosclerosis is a primary osteodystrophy unrelated to radiation exposure.
  • Inner ear malformations (incomplete partition types II and III, cochlear hypoplasia, ossicular chain anomalies): present with similar hearing loss symptoms but show developmental abnormalities on imaging rather than acquired otic capsule demineralization.
  • Labyrinthine fistula or post-fenestration changes: post-operative neo-windows created in the lateral semicircular canal should not be confused with otosclerotic lucencies or labyrinthine fistulae.
Discussion

Otosclerosis is a biphasic osteodystrophy with an early osteolytic/spongiotic phase (lucent demineralization on CT) and a later sclerotic phase (increased density); both phases can coexist, and the osteolytic phase is most readily visible on imaging.

The condition affects 0.1-1% of the population symptomatically but has histologic prevalence up to 10-12% in White populations, indicating that many cases are asymptomatic; female predominance (F:M ~2:1) and racial predilection suggest genetic and environmental contributions.

Fenestral otosclerosis causes conductive hearing loss through stapes fixation; retrofenestral otosclerosis causes sensorineural hearing loss via cochlear demineralization; the two are considered a continuum rather than distinct entities.

The Symons and Fanning grading system (0-3) provides standardized assessment with good inter- and intraobserver agreement: grade 0 (normal), grade 1 (fenestral only), grade 2 (patchy cochlear with or without fenestral, further divided into 2A/2B/2C based on cochlear turns affected), and grade 3 (diffuse confluent cochlear involvement).

Pre-operative imaging must evaluate oval window niche size (minimum 1.4 mm), round window obliteration, facial nerve relationship, jugular bulb height, superior canal dehiscence, and exclude inner ear malformations to optimize surgical planning and prevent complications.

Medical management with sodium fluoride or bisphosphonates targets the active osteolytic phase to slow progression; surgical management (stapedectomy for fenestral disease, cochlear implantation for retrofenestral) remains the standard treatment, with post-operative imaging assessing prosthesis placement, incus erosion, and complications.

Reporting Pearls

When reporting otosclerosis on CT, clearly specify the subtype (fenestral versus retrofenestral) and phase (otospongiotic versus otosclerotic), use the Symons and Fanning grade to standardize severity assessment, describe the precise location of involvement (e.g., 'lucency at the fissula ante fenestram causing stapes fixation'), and explicitly note critical surgical landmarks including oval window dimensions, facial nerve course, jugular bulb position, and any associated round window or cochlear involvement to guide otologic surgical planning.

Pitfalls
  • Confusing the terms 'otosclerosis' (strictly referring to the late inactive sclerotic phase) with 'otospongiosis' (the early active osteolytic phase); clinically both are referred to as otosclerosis, but recognition of the phase on imaging has treatment implications.
  • Mistaking post-fenestration neostomies (surgical neo-windows created in the lateral semicircular canal) for otosclerotic lucencies or labyrinthine fistulae; knowledge of surgical history is essential to avoid misinterpretation.
  • Underestimating the significance of isolated round window involvement or missing concurrent round window disease in cases focused only on stapes footplate changes; round window otosclerosis can progress and contribute to hearing loss.
  • Misinterpreting sclerotic phase otosclerosis as normal bone due to minimal density differences; look for otic capsule thickening or an abnormally convex cortical contour anterolateral to the oval window, and use MRI enhancement patterns to confirm active disease in equivocal cases.
