Cholesterol granulomas

Cholesterol granulomas are encountered in young to middle-aged patients, often with a history of chronic otitis media. They represent the most common cystic lesion of the petrous apex and may present with conductive hearing loss, cranial nerve dysfunction, tinnitus, or remain asymptomatic depending on location.

Key Images


Image 3

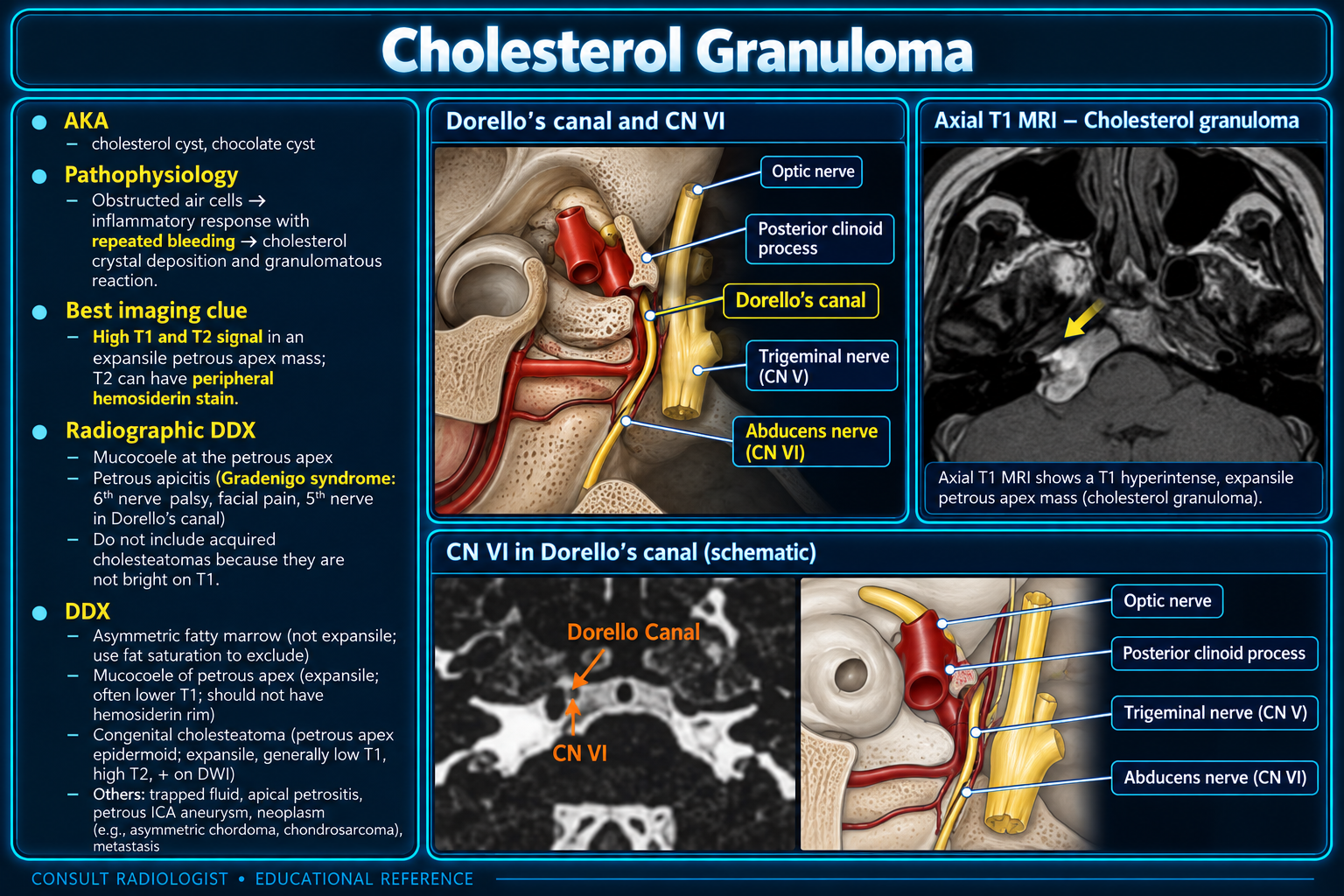

Image 10

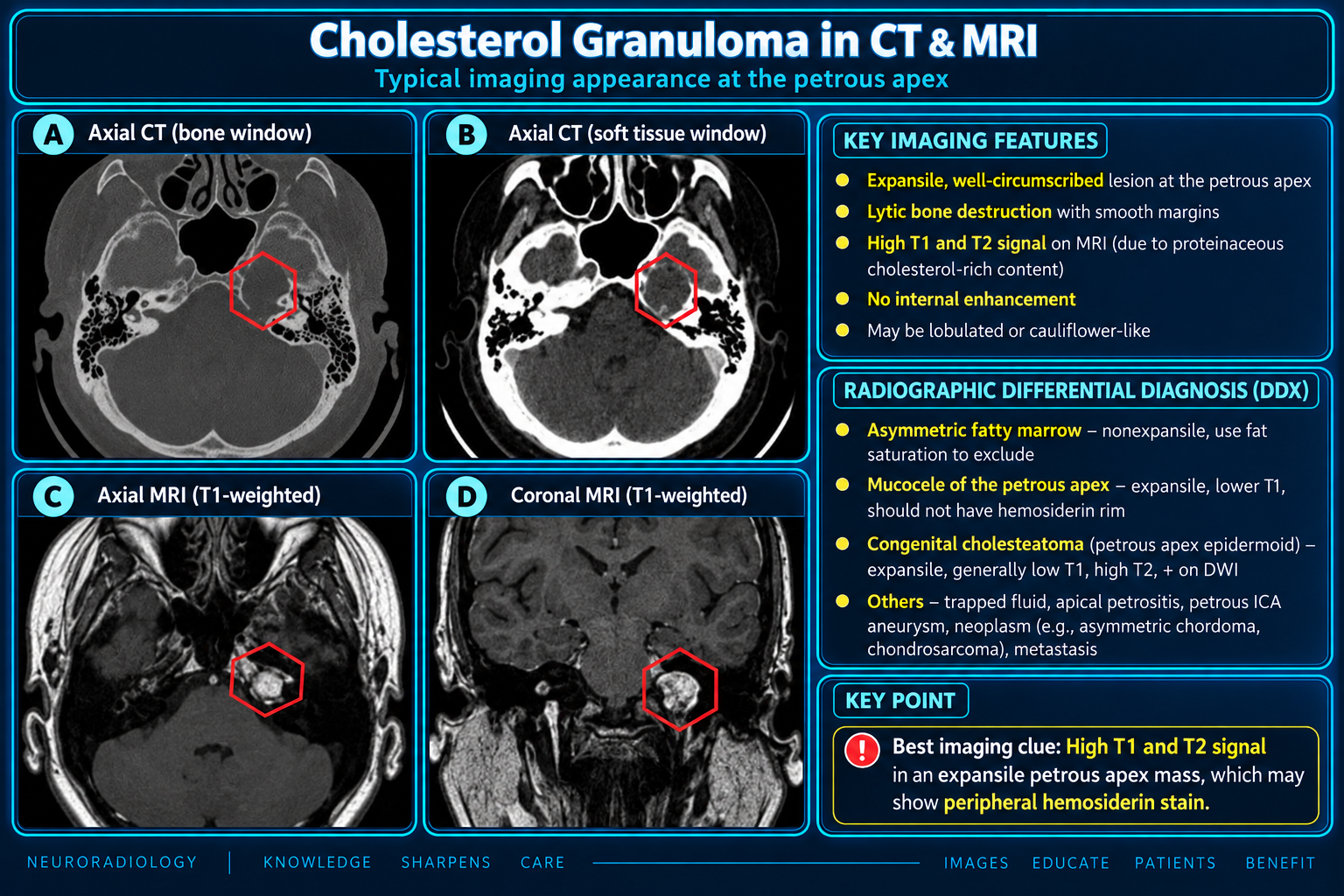

Image 11

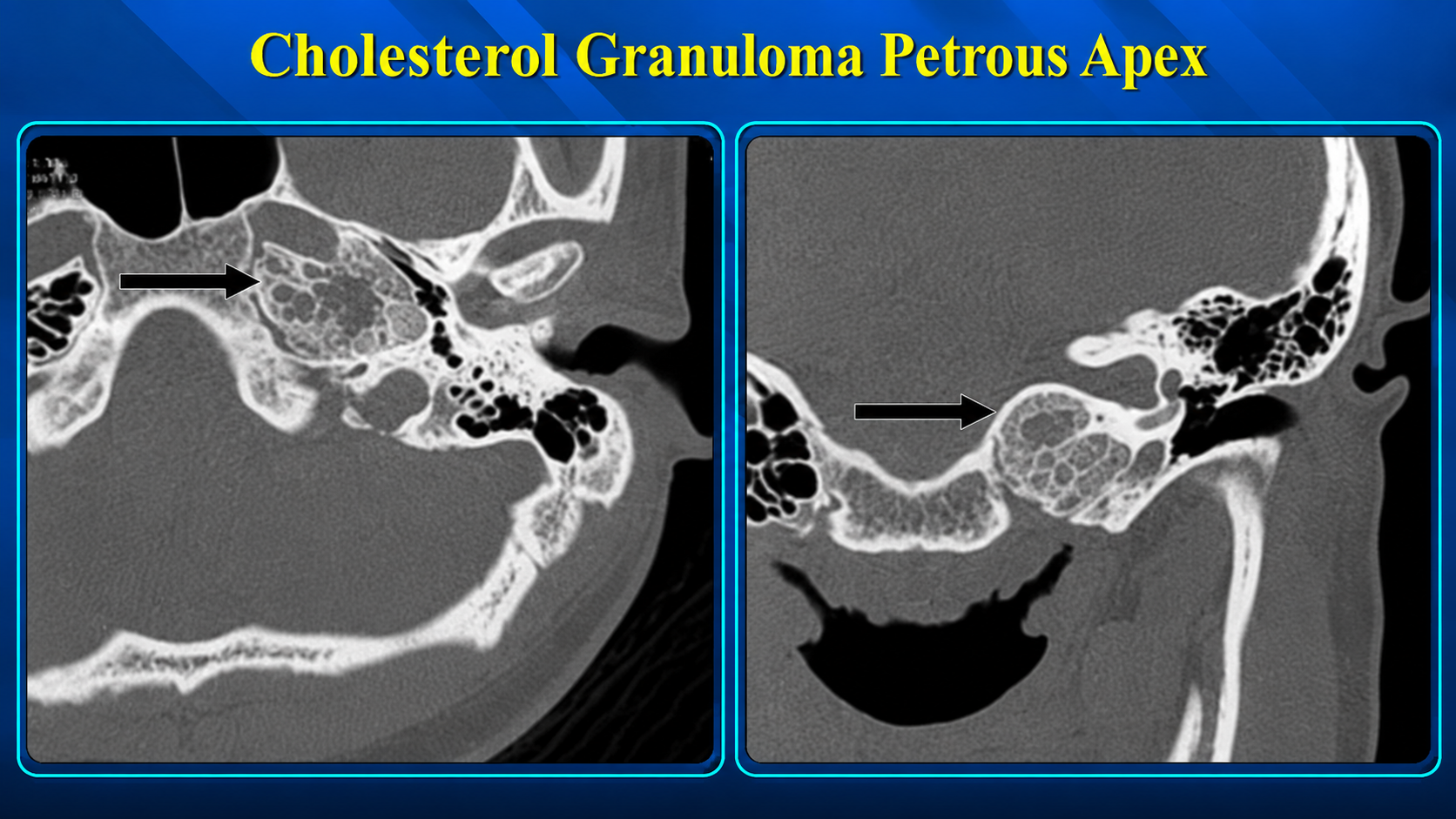

Image 12

Look For First
  • Expansile, well-marginated petrous apex or middle ear lesion with high T1 signal due to cholesterol crystals and methemoglobin
  • Peripheral low signal hemosiderin rim on T2 with central high T2 signal
  • Lack of enhancement on T1 post-gadolinium despite bright intrinsic T1 signal
  • Thinned adjacent bone with potential expansion or dehiscence
Key Image Findings
  • On T1 weighted imaging: overall high signal intensity throughout the lesion due to cholesterol component and methemoglobin, often with a low signal hemosiderin rim
  • On T2 weighted imaging: central high signal with potential peripheral low signal rim from hemosiderin deposition, reflecting the composition of blood breakdown products
  • On FLAIR imaging: the lesion does not attenuate (remains bright), which helps distinguish it from simple cerebrospinal fluid
  • On fat-suppressed sequences: the lesion maintains high signal intensity, confirming that the high T1 signal is not from adipose tissue
  • On T1 post-gadolinium imaging: no central enhancement despite the intrinsic high T1 signal; peripheral enhancement may be subtle or difficult to visualize due to lack of signal saturation
  • On DWI/ADC: typically no restricted diffusion, though elevated DWI and low ADC may be present with hemorrhagic products
  • CT appearance: expansile, well-marginated lesion with thinned or dehiscent overlying bone; petrous apex lesions may show aggressive features including bony erosions and extension to the carotid canal or cerebellopontine angle, while middle ear locations rarely show associated erosion
  • Histologic composition consists of cholesterol crystals, multinucleated giant cells, red blood cells, hemosiderin, and blood breakdown products within a fibrous capsule containing fragile blood vessels prone to rupture
Differential Diagnosis
  • Middle ear effusion or pneumatized petrous apex effusion: lacks expansion and shows fluid rather than cholesterol crystals; no high T1 signal
  • Cholesteatoma: typically shows enhancement and restricted diffusion on DWI; may have different morphology and clinical presentation
  • Epidermoid cyst (white epidermoid or atypical variant): shows very bright signal on DWI with diffusion restriction and rare intraosseous location; lipid/protein content may mimic high T1 signal
  • Thrombosed internal carotid aneurysm: signal is usually more complex due to layered blood products of different ages; may have central flow void if not completely thrombosed
  • Hydrated mucocele: rare lesion that may have identical MRI signal (high T1, high T2, no enhancement), but much less common and usually has different clinical context
  • Skull base tumors, metastases, or chondrosarcoma: typically enhance post-contrast; lack the characteristic high T1 signal without enhancement pattern
Discussion

Cholesterol granulomas arise from two proposed mechanisms: obstruction-vacuum theory (eustachian tube dysfunction leading to mucosal edema and repeated bleeding) or exposed marrow theory (hyperplastic mucosa invading bone and causing marrow hemorrhage), both resulting in trapped blood degeneration surrounded by chronic inflammation

The characteristic high T1 and high T2 signal is pathognomonic and reflects the histologic composition dominated by cholesterol crystals and methemoglobin, which are retained within a fibrous capsule with fragile vessels prone to recurrent rupture

The hemosiderin rim on T2/T2* imaging represents chronic bleeding and indicates the chronic nature of the lesion and recurrent hemorrhage within the capsule

Location determines both clinical presentation and imaging appearance: petrous apex lesions tend to be more aggressive with erosions and mass effect, while middle ear lesions rarely erode bone

The lack of enhancement despite high intrinsic T1 signal (non-saturable) distinguishes cholesterol granulomas from most other enhancing lesions and is key to diagnosis

Treatment requires surgical excision including the entire cyst wall due to high recurrence rates; recurrence reflects the tendency of the fragile capsule to bleed and reform despite intervention

Reporting Pearls

Describe as an "expansile, well-marginated lesion with high intrinsic T1 and T2 signal characteristic of cholesterol/methemoglobin, no post-gadolinium enhancement, and hemosiderin rim on T2, consistent with cholesterol granuloma." Note the location precisely (petrous apex vs. middle ear vs. mastoid) and measure the lesion; comment on bone thinning or dehiscence and any mass effect on adjacent structures (cranial nerves, carotid artery, cerebellopontine angle).

Pitfalls
  • Mistaking the intrinsic high T1 signal for fat; use fat suppression sequences to confirm the signal remains high (unlike adipose tissue which is suppressed)
  • Over-interpreting subtle peripheral enhancement or assuming lack of enhancement rules out other lesions; cholesterol granulomas characteristically show no central enhancement despite high T1 signal
  • Confusing with epidermoid cyst or mucocele on T1/T2 alone; diffusion-weighted imaging is helpful as epidermoids show restricted diffusion while cholesterol granulomas typically do not
  • Underestimating the significance of petrous apex location; these lesions can be more aggressive with erosions and complications compared to middle ear cholesterol granulomas, which are usually benign and stable
