Cavernous sinus invasion (Zurich pituitary score)

Pituitary adenomas are assessed preoperatively with MRI to predict the likelihood of gross total resection via transphenoidal approach and to identify cavernous sinus invasion, which affects surgical planning and prognosis.

Key Images


Look For First
  • Horizontal tumor diameter relative to the intercarotid distance at the C4 intracavernous segment on coronal contrast-enhanced T1-weighted MRI
  • Lateral extension of tumor toward and beyond the internal carotid arteries within the cavernous sinus
  • Encasement or displacement of the intracavernous ICA indicating grade IV disease
Key Image Findings

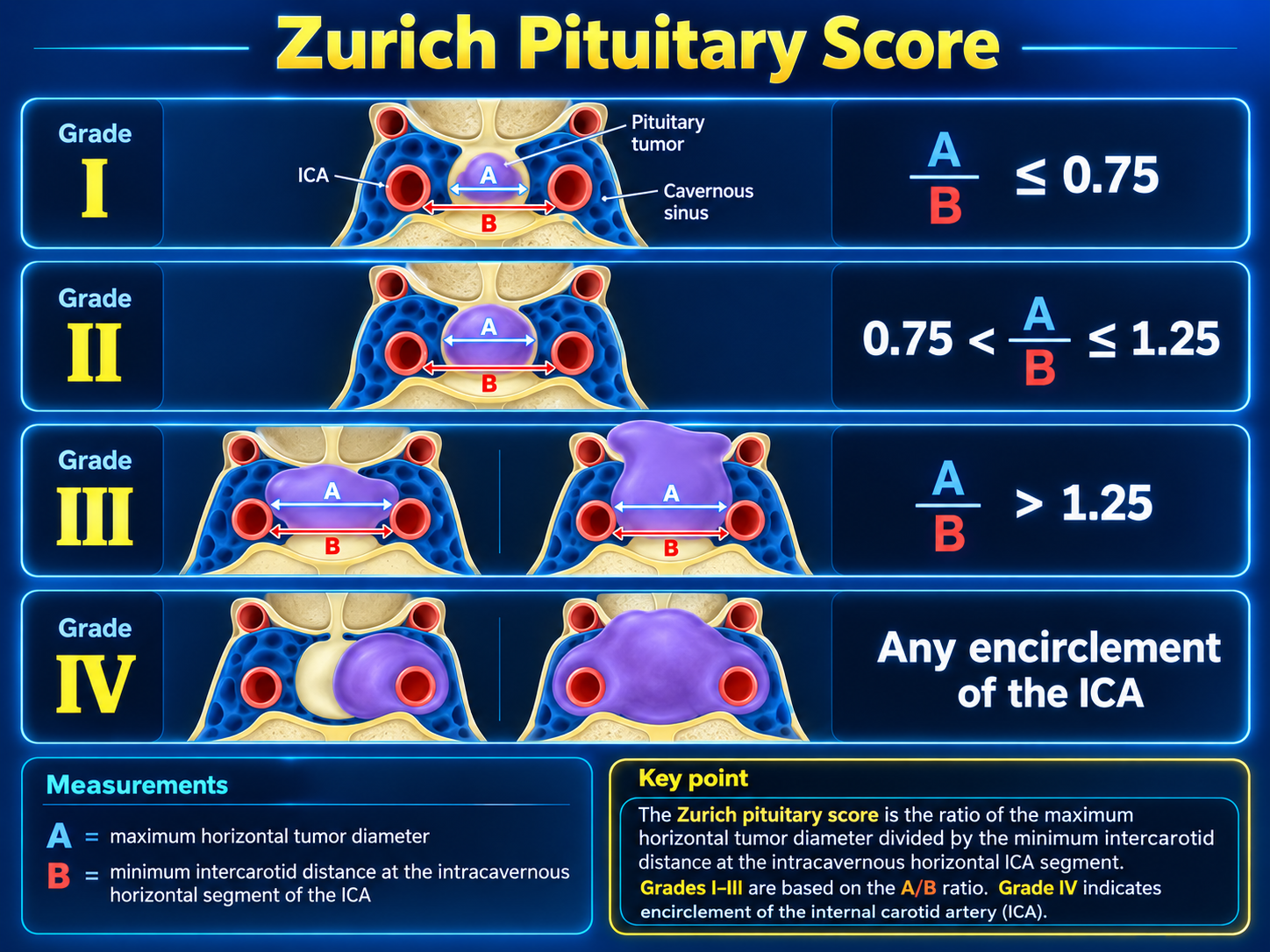

  • The Zurich pituitary score is calculated as the ratio of maximum horizontal tumor diameter divided by the minimum intercarotid distance at the C4 Bouthillier classification horizontal intracavernous segment, measured on coronal contrast-enhanced T1-weighted MRI.
  • Grade I (R ≤ 0.75) represents tumor confined medial to the ICAs with minimal lateral extension into the cavernous sinus.
  • Grade II (0.75 < R ≤ 1.25) represents intermediate lateral extension with tumor diameter approaching or slightly exceeding the intercarotid distance.
  • Grade III (R > 1.25) represents significant lateral extension with tumor diameter substantially exceeding the intercarotid distance, indicating probable cavernous sinus invasion.
  • Grade IV represents complete encasement of the intracavernous internal carotid artery with tumor, indicating extensive cavernous sinus invasion.
  • The score can be obtained on coronal contrast-enhanced T1-weighted MRI or computed tomography, though MRI is preferred for soft tissue characterization.
  • The anatomic rationale is that lateral extension beyond the ICAs correlates directly with invasion of cavernous sinus structures and difficulty achieving complete resection.
  • The Zurich score demonstrates excellent interrater reliability, making it more reproducible than alternative classification systems such as the Knosp scale.
Differential Diagnosis
  • Knosp scale (alternative grading system) — Zurich score shows superior interrater reliability and better correlation with gross total resection rates.
  • Tumor indentation versus invasion of cavernous sinus — the Zurich score quantifies lateral extension radiographically rather than relying on subjective assessment of invasion.
  • Pseudoencasement (displacement of ICA without true invasion) versus grade IV encasement — true encasement requires circumferential tumor contact with the vessel.
Discussion

The Zurich pituitary score correlates strongly with gross total resection rates: grade I achieves 92% gross total resection, grade II achieves 77%, grade III achieves 67%, and grade IV achieves only 15%.

Higher Zurich scores indicate cavernous sinus invasion, which limits the extent of safe surgical resection due to proximity to critical neurovascular structures within the sinus.

The score is based on the principle that lateral tumor extension beyond the intercarotid distance predicts higher risk for invasion of medial cavernous sinus contents and more difficult complete resection.

The Zurich score is superior to the Knosp scale because it demonstrates excellent interrater reliability, reducing observer variation in preoperative tumor assessment.

The score can guide surgical planning: grade I tumors are amenable to gross total resection, while grade IV tumors require modified surgical goals and often adjuvant radiation therapy.

The Zurich score provides objective quantification of tumor burden relative to normal anatomy, allowing consistent stratification and prediction of surgical outcomes.

Reporting Pearls

Report the Zurich pituitary score by clearly documenting the maximum horizontal tumor diameter in millimeters, the minimum intercarotid distance at the C4 horizontal intracavernous segment in millimeters, the calculated ratio, and the corresponding grade (I, II, III, or IV), along with description of any direct encasement of the internal carotid artery to guide surgical planning.

Pitfalls
  • Measuring the intercarotid distance at an incorrect level (above or below C4 horizontal segment) will invalidate the ratio and misclassify the grade.
  • Confusing pseudoencasement (lateral displacement of the ICA without true invasion) with grade IV encasement; true encasement requires circumferential tumor contact.
  • Failing to use coronal imaging (coronal T1 with contrast is standard) may lead to inaccurate measurement of horizontal tumor diameter and intercarotid distance.
  • Assuming subjective visual assessment of 'invasion' without calculating the quantitative ratio; the score's strength lies in its objective, reproducible measurement.
