Cortical laminar necrosis

Cortical laminar necrosis is seen following hypoxic-ischemic insults such as cardiac arrest, global hypoxia, hypoglycemia, or status epilepticus when oxygen and glucose supply cannot meet neuronal metabolic demands.

Key Images

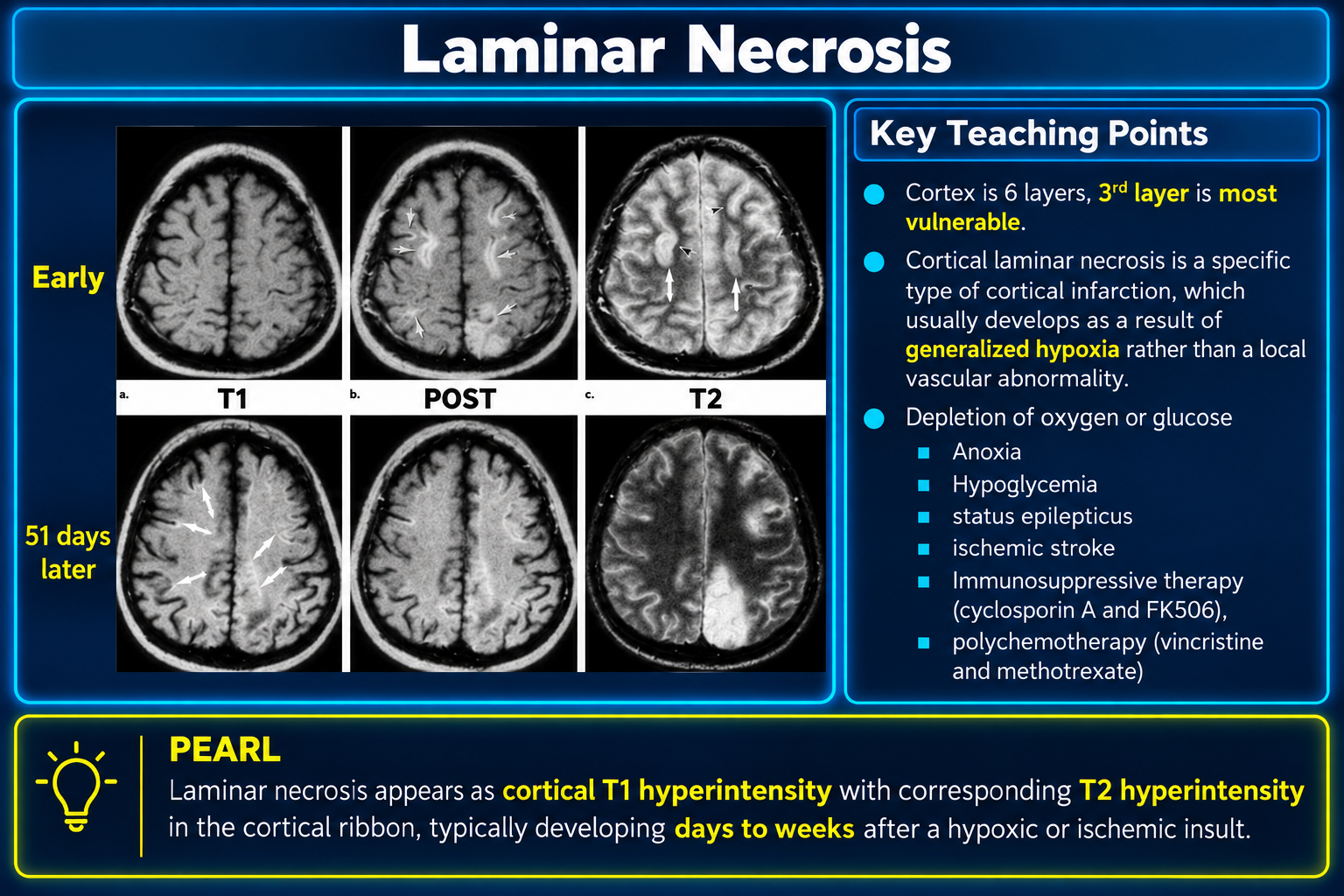

Image 2

Look For First
  • Curvilinear T1 hyperintensity confined to cortex (peak intensity 1 month post-injury)
  • DWI hyperintensity with restricted diffusion (ADC low) in acute phase
  • Involvement favoring sulcal banks and bases rather than gyral crests
Key Image Findings
  • DWI shows high signal with low ADC values in affected cortex during the acute phase (cytotoxic edema), typically reversing by 2-4 weeks.
  • Intrinsic T1 curvilinear hyperintensity in cortex is the most specific imaging feature, appearing 3-5 days post-injury but typically visible after 2 weeks, peaking around 1 month, then slowly fading over 3 months (occasionally persisting >1 year).
  • T1 hyperintensity is caused by denatured proteins in dying cells and lipid-laden macrophages, NOT hemorrhage or calcification.
  • T2-weighted images show increased signal or iso-intensity compared to unaffected cortex, without prominent white matter involvement.
  • Distribution pattern: involvement of sulcal banks and bases is more common than gyral crests.
  • Third and fourth cortical layers are most vulnerable to metabolic stress, while layers 2 and 4 show greater resilience.
  • Cortical enhancement may appear later in acute phase and typically persists for up to 3 months.
  • In chronic phase, limited subcortical white matter involvement shows iron deposition without the encephalomalacia seen in cerebral infarcts.
Differential Diagnosis
  • Subacute cerebral infarction: T1 hyperintensity may be present, but infarcts show subcortical white matter involvement and encephalomalacia in chronic phase, whereas cortical laminar necrosis shows selective cortical involvement with iron deposition only.
  • Thromboembolic infarct with T1 hyperintensity: misuse of terminology—cortical laminar necrosis term should only apply to isolated cortical involvement without subcortical white matter damage.
  • Acute hemorrhage: can be distinguished as T1 hyperintensity in cortical laminar necrosis represents proteins and lipids, not hemoglobin, and no hemorrhage is evident on CT acutely.
  • Cortical calcification: dystrophic calcification may occur in chronic infarction but cortical laminar necrosis specifically shows no calcification acutely.
  • Seizure-induced cortical injury: status epilepticus can cause cortical laminar necrosis due to increased metabolic demand, but timing and distribution pattern help distinguish from other etiologies.
Discussion

Cortical neurons are far more metabolically active than glial cells or adjacent white matter, making them selectively vulnerable to hypoxic-ischemic insults.

Specific cortical layers (particularly layer 3) have differential vulnerability to metabolic stress, creating the laminar pattern of injury.

The term 'cortical laminar necrosis' should be reserved for isolated cortical involvement and not applied to thromboembolic infarcts with white matter damage, despite similar pathological changes at infarct margins.

T1 hyperintensity is the most specific imaging feature but appears relatively late (typically 2 weeks), so DWI is superior in the acute phase for detecting these changes.

The temporal evolution of T1 signal (appearing 3-5 days, peaking 1 month, fading over 3 months) helps date the insult and distinguish cortical laminar necrosis from other pathology.

In chronic phase, cortical laminar necrosis shows limited white matter changes with iron deposition rather than extensive encephalomalacia, differing from typical infarction.

Reporting Pearls

Describe curvilinear T1 hyperintensity in a laminar distribution confined to the cerebral cortex (often along sulcal banks) without associated white matter involvement or hemorrhage, emphasizing the specificity of this finding and dating the injury based on when T1 signal peaks (typically 1 month post-insult).

Pitfalls
  • Confusing cortical T1 hyperintensity from subacute infarction with cortical laminar necrosis—the key distinction is that infarcts involve subcortical white matter whereas cortical laminar necrosis is isolated to cortex.
  • Mistakenly using the term 'cortical laminar necrosis' for thromboembolic infarcts simply because T1 signal is present, which makes the term clinically and pathologically meaningless.
  • Misinterpreting T1 hyperintensity as hemorrhage or calcification—cortical laminar necrosis T1 signal represents denatured proteins and macrophages, not blood or calcium.
  • Overlooking DWI as the superior sequence in the acute phase; relying solely on conventional sequences may delay recognition of cortical involvement when T1 signal is not yet visible.
Source: Reference source
